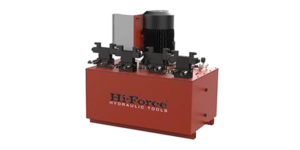

The HSP split flow, hydraulic pump is designed to deliver equal volumes of oil from each individual control valve regardless of any variations in the hydraulic pressure.

Each valve outlet is connected directly to an independent internal piston pump which is driven by a common electric motive force. This allows each internal piston pump to deliver an equal amount of oil flow per minute regardless of any variations in the required operating pressure at each control valve outlet.

With HSP split flow pumps lifting and positioning large, unevenly weighted loads using multiple jacking points in a synchronized, level lift and controlled manner is easily achievable. Individual control of each valve is via a specially made electric control box with easily identifiable on/off switches for each applicable valve plus a synchronized lift control button for all of the selected control valves. There is a remote hand pendant control system which is wired to the pump mounted control box.

Maximum working pressure of all HSP pumps is 700 Bar with an externally adjustable pressure relief valve for easy pressure adjustment between 70 and 700 Bar. Electric motors are 380/440 volt three phase operation.

Sales, rental, and service of split flow pumps are available through Better Bolting Inc.
